900*1500mm CNC Wood Advertisement Router with Vacuum Table/Mach3
Industry application: Wood work, Advertising Sign&Mark, Acrylic
Cutting, Advertising plate, Led Lamp.
Applicable material: Wood, Aluminum sheet, aluminum composite
panel, dual-color plate, Mdf, Cristal plate, artifical marble and
other metal and non-metal materials.
Working Method: 3D embossment engraving, 2D engraing and Cutting,
1.Cast iron lathe bed. Stable Running with less Vibration.
2.With Gantry moving type, stable and durable for long time using.
Ensure high positioning accuracy.
3.Vacuum adsorption system with 5.5kw air cooling vacuum pump, vacuum table which is divided into 4 zones,can adsorb different
size materiel from small to big, saving materials load-unloaded
4.XYZ three axis are with linear square guide rail, Hiwin, Taiwan.
Ball screws transmission for all axis. Durable running with Higher
5.Large Power 3.2kw water cooling spindle which is applicable not only for cooper
plate, aluminum plate, iron plate engraving but also for wood
working. It can cut 20-30mm thickness acrylic by one time cutting.
The fine engraving is more smoothly and clear by large power
6.Dust-Proof design for XZ-axis, protect the guide rail and ball
screws from the Dust&Dirt, help to ensure machine working
7. China powerful 86BYGH450A stepper motor and Leadshine DMA860H driver for XYZ-axis, faster speed and high precision working, and not
easy to loss steps.
8.Mach3 control system, with USB port for desktop or laptop computer,
showing the processing path , more convenient.
9.Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic
parts, minimizing fault rate, Adopt high flexible cable and
imported electronic parts, electrical design of whole machine is
complied with the CE standard.
10.With the function of break-point memory, power failure resuming and automatic home/origin correction
function.The Working can be resumed after unexpected situations or next
day.effectively ensure long time working precision.
11. Working Pause, Speed adjust, Working depth adjust at any time while
working. Preview the 2D&3D working result With simulation function.
Variable Speed is suitable for various materials and industry.
12. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit
protection function which can stop the mechanical collision due to
unproper size given to the design.
13. Auto tools calibration fucntion, convenient for the operation.
|Effective working area||900(X)mm*1500Y)mm*250(Z)mm|
|Materials||Square steel tube machine holder, cast iron machine bed, cast
|Working table||Vacuum table with aluminum T slot|
|Moving type||Gantry moving|
|Guide rail||Linear square guide rail, Hiwin, Taiwan|
|Transmission||Lead ball screw for XYZ-axis|
|Driving mode||Stepper motor and driver|
|Spindle motor||3.2kw water cooling|
AC 220V±10%, 50/60Hz, sinle phase or
AC 380V±10%, 50/60Hz, three phases
|Control system||Mach3 with USB port|
|Suitable software||Artcam, Type3, Ucancam V9,etc|
|Carving Instructions||G code *Uoo *mmg *plt HPGL|
|Running environment temperature||0-45 ℃|
Reference Parts Photos
3.2kw water cooling spindle
Auto tools calibration
Vacuum table with aluminum T slot

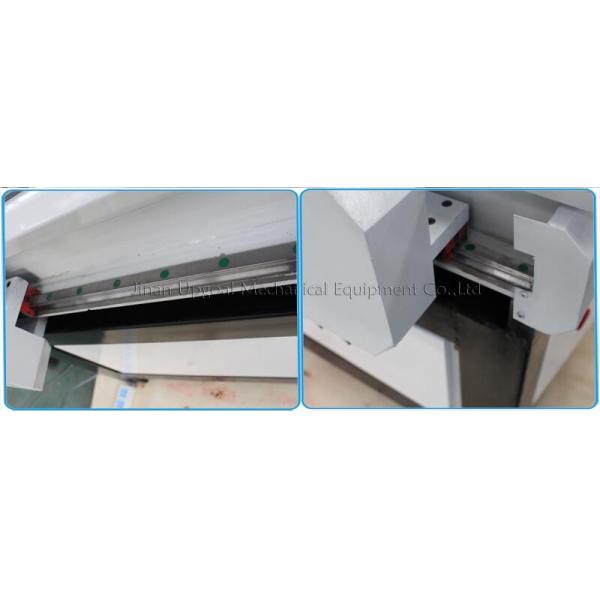

Linear square guide rail, Hiwin, Taiwan
Mach3 control system
Leadshin driver & Sunfar inverter
Reference Sample Photos
Reference Working Videos
For more information, just feel free to contact us!
